Bearings

Track Roller Bearings

Features & Benefits

• Powerdrive TRACK ROLLER bearings are available in a wide variety of options:
• Standard sizes and custom designs available upon request
• Hex Socket hole
• Cylindrical, V-Groove or Flanged OD
• Standard stud, Eccentric stud
• Manufactured from bearing quality steel
• A ductile stem on stud type versions that provides toughness
• Black oxide finish on all external surfaces helps inhibit corrosion
• The threads are manufactured to class 2 tolerances
• Bearings are supplied pre-lubricated and maintenance free
• Standard sizes and custom designs available upon request

Industries

• Automotive
• Material Handling
• Food Processing
• Foundries

Applications

• Conveying
• Mixing Equipment
• Material Handling

Taper Roller Bearings

Features & Benefits

• Suitable for combined load (in radial and axial direction)
• Perform under extreme environment condition and varying speed
• Perfect rotating movement with low friction and increased power density
• Enhance performance in demanding application.
• Available in Metric and Inch series.
• Available in single row and double row.
• Cup and Cone interchangeable.
• Metric range 30/31/32/33 series
• Inch range L, LL, LM, JLM, JHM, JP, M, HM, H series

Application:

• Automotive
• Agriculture
• Steel making machinery (Rolling Mill)
• Paper making machinery
• Food processing machinery
• Railway application
• Construction equipment

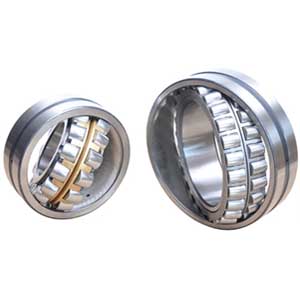

Spherical Roller Bearings

Features & Benefits

• High load carrying capacity
• Heavy misalignment capacity
• Reduced friction and minimum heat generation
• Available in steel and brass cage
• Brass cage : CA and MB types
• Steel cage : CC and E types
• Available in sealed and E design version
• Available in plain and taper bore
• Range 20mm to 600mm bore dia
• Series 21300, 22200, 22300, 23000, 23100, 23200, 24000, 24100

Application:

• Mining
• Power generation
• Waste water treatment
• Agricultural machinery
• Earth moving machinery
• Industrial machinery for cleaning and bottling
• Automatic opening system

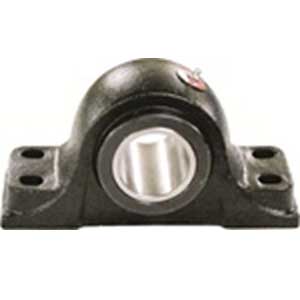

SAF Split Pillow Block Bearing

Features & Benefits

• SAF pillow block bearing is manufactured in cast iron, cast iron and ductile iron.
• SAF split pillow block bearing design accommodates grease or oil lubrication.
• Combination of five bearing types, four sealing options and two mounting methods, enabling the SAF to be optimized for a wide variety of applications.
• The housing is mated set; they cannot be interchanged with other caps or bases.
• SAF split pillow block bearing are available in two and four-bolt base mounting configurations, which allows for moderate adjustments during installation.
• The cast iron SAF split pillow block accommodate self-aligning ball bearings or spherical and toroidal (CARB) roller bearings and are suitable for adapter or cylindrical mounting to a shaft.
• SAF split bearing or housings are available for shaft sizes ranging from 1-3/16” to 10-1/2” and offer a choice of two or four bolt base mounting.
• The housings are horizontally split and have two or four bolt holes in the base, depending on the housing size.
• SAF pillow block bearing convenient split design facilitates assembly and disassembly.
• Precision machined housing seat provides even load distribution and dependable float mountings.
• Allows grease or oil bath and can be easily adapted to circulating oil systems and can accommodate both inch and metric shafting.

Mounted Ball Bearing

Features & Benefits

• Available in shaft sizes 1/2" to 3" and 12 to 75 MM
• Housings are available in light, standard and medium duty
• Both wide inner and narrow inner ring inserts are available
• Mounting configurations - pillow block, 2, 3 & 4 bolt flange blocks, tapped base, take-up, screw conveyor hanger and rubber mounted
• Setscrew, Concentric, and Eccentric locking collar
• Housing materials - Cast & Ductile Iron, Stamped Steel.
• Can be conveniently mounted or dismounted and can align easily during operation.

Our Mounted Ball Bearing Series Includes:

1 Pillow Blocks
• Set Screw Locking : UCP, UCAK, UCPX, UCPA, SBP. SBAK, SBLP, SBPSD
• Eccentric Locking Collar: HCP, HCAK, SAP, SAAP, SALP,SAPSD
2 Bolt Flange Block
• Set Screw Locking : UCFL, UCFT, SBFT,SBFL,SBLF, SBFTN, SBFTD
• Eccentric Locking Collar: HCFT, SAFT,,SALF,SAFTN, SAFTD
4 Bolt Flange Block
• Set Screw Locking : UCFL, UCFT, SBFT,SBFL,SBLF, SBFTN, SBFTD
• Eccentric Locking Collar: HCFT, SAFT,,SALF,SAFTN, SAFTD
3 Bolt Flange Block
• Set Screw Locking : SBFCT
• Eccentric Locking Collar: SAFCT
Screw Conveyor Hanger Unit
• Set Screw Locking : UCSH
Take-Up Units
• Set Screw Locking : UCST
• Eccentric Locking Collar: HCST
Rubber Mount
• Set Screw Locking : RCSMS, SBR
• Eccentric Locking Collar: RCSM, SAR
Inserts Bearings
• Set Screw Locking : UC200, UCX, SB200, CSB200 and SER200
• Eccentric Locking : HC200, SA200, CSA

Cylindrical Roller Bearings

Features & Benefits

• Heavy radial load carrying capacity
• Able to bear axial load to a certain extend
• High shock absorption capability
• Strong resistance to overload
• High speed performance
• Easy to fit and dismantle
• Silent running
• Available in steel, brass and polyamide cages
• Available in full compliment
• Range 10mm to 400mm bore dia
• Series N, NJ, NU, NUP
• Inch series RLS, CRL, CRM

Application:

• Automotive
• Aerospace
• Power
• Electric motors
• Fitness equipment
• Earth moving machinery
• Industrial machinery

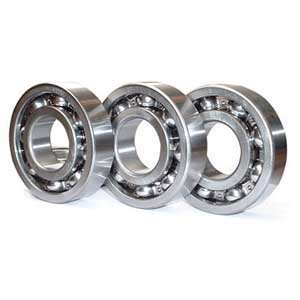

Ball Bearings

Features & Benefits

• Heavy radial load carrying capacity
• Geometry control as per P0, ABEC1
• Silent running
• Quality grease
• Large production
• Low maintenance application
• Available in steel, brass and polyamide cage
• Available in Z, ZZ, RS, 2RS
• Available in C2, CN, C3, C4, C5
• Available in EMQ
• Range 10mm to 300mm bore dia

Our Ball Bearing Series Includes:

• Deep Groove Ball Bearings
Single row series 6000, 6200, 6300, 6400, 16000, 61800, 61900
Double row series 4200, 4300
Inch series XLS, RLS, RMS
• Angular Contact Ball Bearings
Single row series 7200, 7300
Double row series 3200, 3300, 5200, 5300
Universal flush ground match pairs
As per ANSI pump requirement
Available in steel, brass cage
Available in B, BG, BMG
• Self Aligning Ball Bearings
Series 1200, 1300, 1400, 2200, 2300
Series RM, RL
Plain and Taper bore
• Thrust Ball Bearings
Available in steel and brass cage
Available in steel and brass cage
• Four Point Contact Ball Bearings
Available in steel and brass cage
Series QJ200, QJ300

Application:

• Automotive
• Aerospace
• Power
• Electric motors
• Pumps
• Industrial
• Machinery equipment
• Cleaning equipment

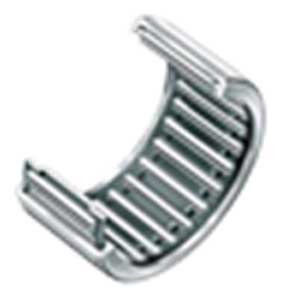

Needle Roller Bearings

Features & Benefits

• Bearings are available in a wide variety of options:
1/2" to 9 1/4" bore diameters
Sealed
Separable
Matched sets
Custom designs
Custom Lubricants
• Manufactured from bearing quality steel.
• Full complement needle bearing provides high static load rating with good shaft support, angular rigidity, and shock resistance as compared to conventional needle roller bearings
• Manufactured from bearing quality steel with through hardened raceways to help ensure long life.
• Inner ring option provides a hardened raceway for the rollers and allows the use of unhardened shaft
• Annular lubrication groove and radial lubrication holes on both inner and outer rings allow relubrication of the bearing through the housing or shaft.

Industries:

• Steel Mills
• Off Highway Equipment
• Oil
• Printing

Applications:

• Cranes
• Pumps
• Printing Presses
• Lift Trucks
• Material Handling

Cam Follower Bearings

Features & Benefits

• Full complement needle roller construction provides high radial load capacity and improved resistance to shock loading verse caged needle bearing.
• Manufactured from bearing quality steel.
• Manufactured from bearing quality steel.
• Inner studs are induction heat treated in the roller path and flange surfaces only. The remainder of the stud is not hardened resulting in a ductile stem that provides toughness.
• Black oxide finish on all external surfaces inhibits corrosion.
• Our sealed bearing option helps extend bearing life by utilizing a lubrication groove and LUBRI seals. The lubrication groove in the outer raceway provides a lubrication reservoir to help prolong lubrication intervals and increase the pre-lubricated life of the bearing. The LUBRI seals helps in three ways:
• The labyrinth and contact sealing protect against loss of lubricant and helps prevent entrance of contamination.
• The vents help prevent seal blow-out during relubrication.
• The integral backplate design reduces internal friction by eliminating metal-on-metal contact
• The threads are manufactured to a class 2 tolerances.
• Bearings are supplied pre-lubricated with lithium soap thickened grease.
• Standard sizes and custom designs available upon request.
• Double rows of cylindrical rollers for higher speeds, radial load rating and incidental thrust capacity.
• Manufactured from bearing quality steel.
• Inch series Heavy-Duty bearings have a large lubricant reservoir design and inward pointed rubber lips as standard to provide maintenance-free operation.
• Metric series Heavy-Duty bearings incorporate a metal shield to help protect bearing and retain grease.
• The inch design threads are manufactured to a class 2 tolerance and the metric design threads are manufactured to a class 6G tolerances. Metric stud type series are supplied with two jam nuts for simple installation.

Industries:

• Automotive
• Steel Mills
• Food Processing
• Printing
• Material Handling

Application:

• Conveying
• Mixing Equipment
• Material Handling
• Automotive
• Packaging
• Steel Mills
